2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping

2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping

Merknaam:	FY
Modelnummer:	Fy-P38
MOQ:	1 set
Prijs:	USD$ 1850/1800/1750/1700
Betalingsvoorwaarden:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Toeleveringsvermogen:	300 sets per maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China, Shanghai

Certificering:

Spanning:

220V/240V/380V/415V ((Facultationeel)

bruto gewicht:

300 kg

Netto gewicht:

275 kg

Vermogen (w):

3KW/4KW

Afmeting (L*W*H):

950*630*700 mm

Pakketafmeting:

1000*680*750 mm

Garantie:

1 jaar

Voorwaarde:

nieuw

After-sales service verleend:

Videotechnische ondersteuning, online ondersteuning

Krimpkracht:

300Ton/0,3MT

Productnaam:

2 inch hydraulische slangkrimpmachine met snelwisselgereedschap en 10 matrijzen voor veelzijdig krim

Krimpbereik:

6-38 mm/1,5 inch/2 inch

kleur:

Blauw,blauw of op maat

Sollicitatie:

Krimpslang

Gratis sterft:

10 sets

Systeemdruk:

26MPA/31.5MPA/260 bar/315 bar

Volume van de pomp:

2.5L/5L

Hoog licht:

Geavanceerde hydraulische pijp plooiende machine, hydraulische de pijp plooiende machine van de Stre

Verpakking Details:

houten kist

Levering vermogen:

300 sets per maand

Markeren:

2.5 Inch Crimping Size Hydraulic Hose Crimping Machine

Fast Change Mould Tool Hose Crimper

10 Interchangeable Dies Hydraulic Crimper

Productbeschrijving

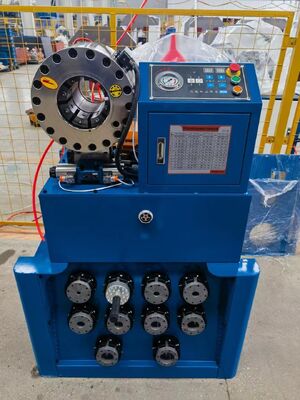

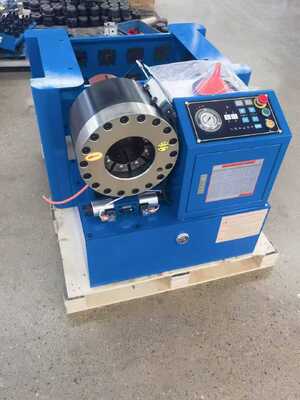

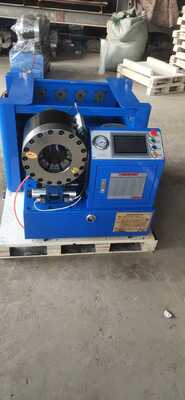

2.5 Inch Hydraulic Hose Crimping Machine

The 2.5 Inch Hydraulic Hose Crimping Machine is a highly efficient and advanced tool designed for precise crimping of hydraulic hoses. Incorporating a fast change mould tool and featuring 10 interchangeable dies, this machine is engineered to provide versatility across various applications. With a robust PLC control system, it guarantees consistent performance, making it an essential asset for professionals in automotive, construction, and industrial sectors.

Key Features

Large Crimping Capacity: Capable of crimping hoses up to 2.5 inches, perfect for applications requiring robust performance and flexibility
Fast Change Mould Tool: Innovative design allows for swift transitions between different dies, reducing downtime
Comprehensive Die Set: 10 interchangeable dies included for accommodating various hose sizes
Advanced PLC Control System: Programmable Logic Controller ensures precise control and consistent results
Sturdy Rack System: Provides excellent support during operation, ensuring stability and precision

Operational Advantages

Enhanced Efficiency: Fast change mould tool and versatile die set significantly improve productivity
Broad Application Range: Suitable for automotive, construction, and various industrial hydraulic systems
User-Friendly Operation: Intuitive design and PLC control ensure easy use for operators of all experience levels
Cost-Effective Solution: Consolidates multiple functionalities into one machine, reducing equipment costs
Safety and Reliability: Built-in safety features protect both user and equipment during operations

Technical Specifications

Model	FY-P38 Hose Crimping Machine
Crimping Range	6-38mm (1/4"-1.5")
Crimping Force	300T
System Pressure	26Mpa/31.5Mpa (Optional)
Accuracy	0.01mm
Work Efficiency	200 pcs/h
Voltage Options	220V/240V/380V/415V
Motor Power	3KW/4KW
Dimensions (LWH)	950630700 mm
Weight	275kg
Die Sets Included	8 sets
